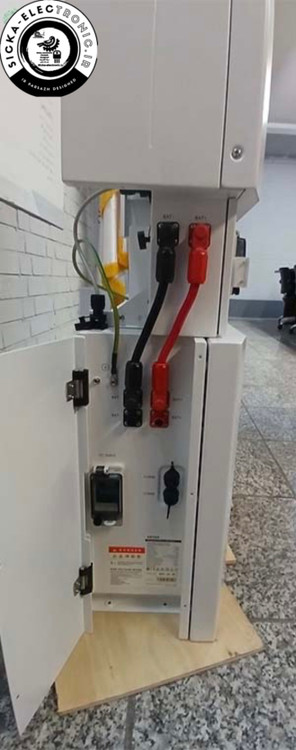

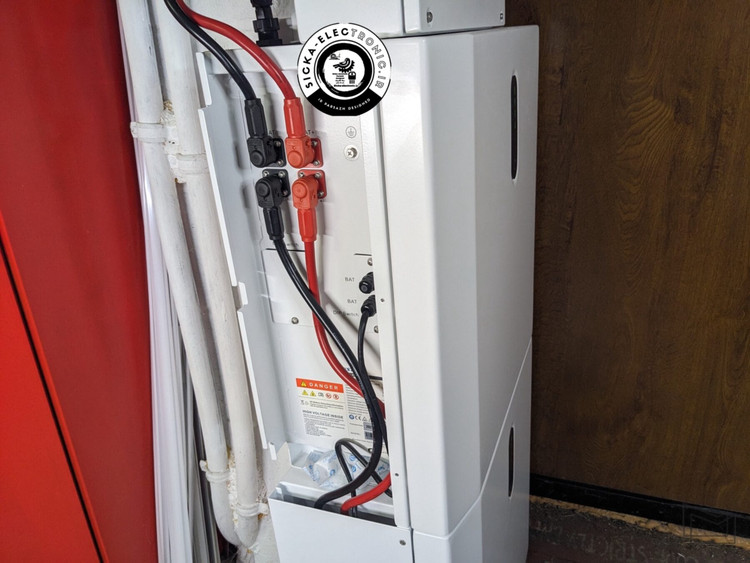

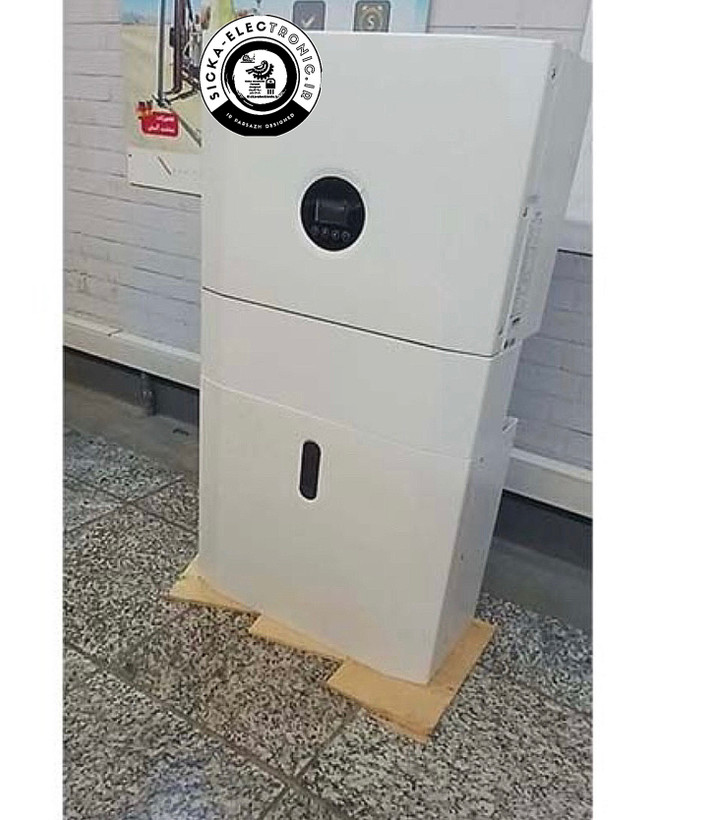

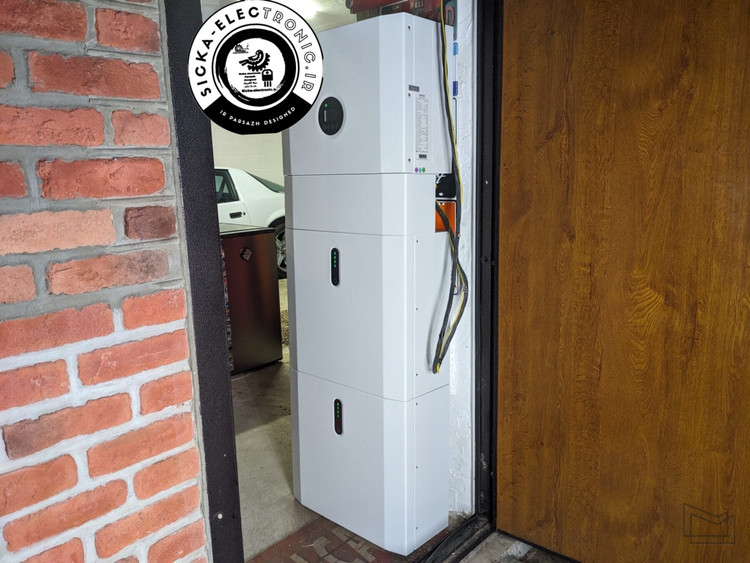

پک خورشیدی یکپارچه شامل اینورتر+کنترل شارژ+باتری لیتیوم -تهیه به سفارش مشتری

pecification

PV String Input

Max. DC Input Voltage (V)

580

Nominal voltage (V)

400

MPPT voltage range

120V-550V

Startup voltage

130V

MPPT voltage range at full load

184~550V

Number of MPPT

2

No. of Strings per MPPT

1

Max. input current per MPPT

13A

Max. short-circuit current per MPPT

16A

AC Output (Grid)

Nominal AC output power

4999W

Max. AC apparent power

7360VA（from grid)

Maximum AC output power

4999W

Nominal AC voltage

230Vac

AC grid frequency range

50 / 60Hz±5Hz

Max. output current

16A

Max. input current

32A

Power factor (cosΦ)

0.8leading-0.8lagging

THDi

<3%

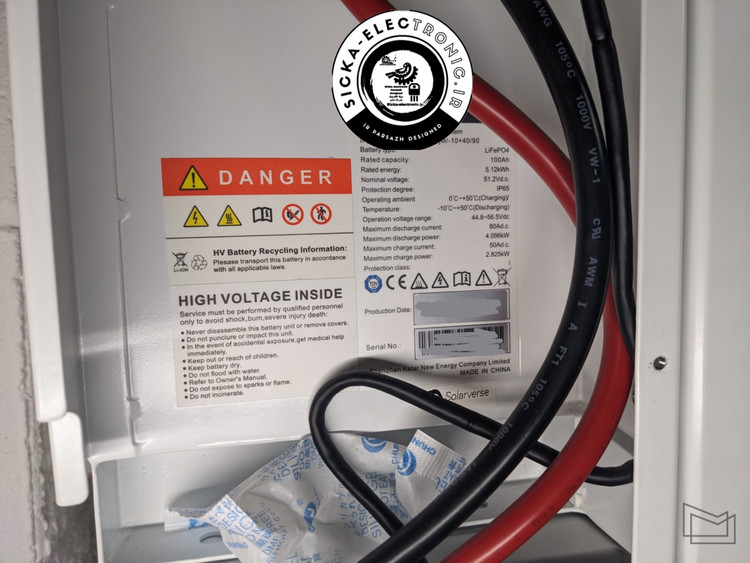

Battery Input

Battery Type

LFP (LiFePO4)

Nominal Battery Voltage

51.2V

Max. Charging Voltage

57.6V

Max. Charging Current

100A

Max. Discharging Current

100A

Battery Capacity

100-400Ah

Lifepo or li ion

Depend on the BMS

AC Output (Backup)

Max. Output Apparent Power

4000VA

Peak Output Apparent Power

6900VA 10sec

Max. Output Current

16A

Nominal Output Voltage

230±0.2%

Nominal Output Freqency

50/60Hz±0.2%

Output THDv (@Linear Load)

<2%（Linear load）/<2%

Efficiency

Max. PV Eciency

97.60%

Euro. PV eciency

97.00%

Max. Battery to Load Eciency

94.00%

Battery charged by PV Max. Eciency

98.00%

Protection

DC switch

Bipolar DC Switch (125A/Pole)

Anti-islanding protection

Yes

Output over current

Yes

DC reverse polarity protection

Yes

String fault Detection

Yes

AC/DC surge protectio

DC Type II;AC Type III

Insulation detection

Yes

AC short circuit protection

Yes

General Specifications

Dimensions W x H x D (mm)

540*590*240mm

Weight(kg)

32kg

Operating temperature range

0℃~+55℃(Charging)/-20℃~+55℃(DisCharging)

Noise (dB)

<25

Cooling type

Natural Convection

Max. operation altitude

≤2000m

Max. operation humidity

0~95% (No condensation)

IP class

IP65

Topology

Battery Isolation

Communication

RS485/CAN2.0/WIFI

Display

LCD/APP

Certifcation
