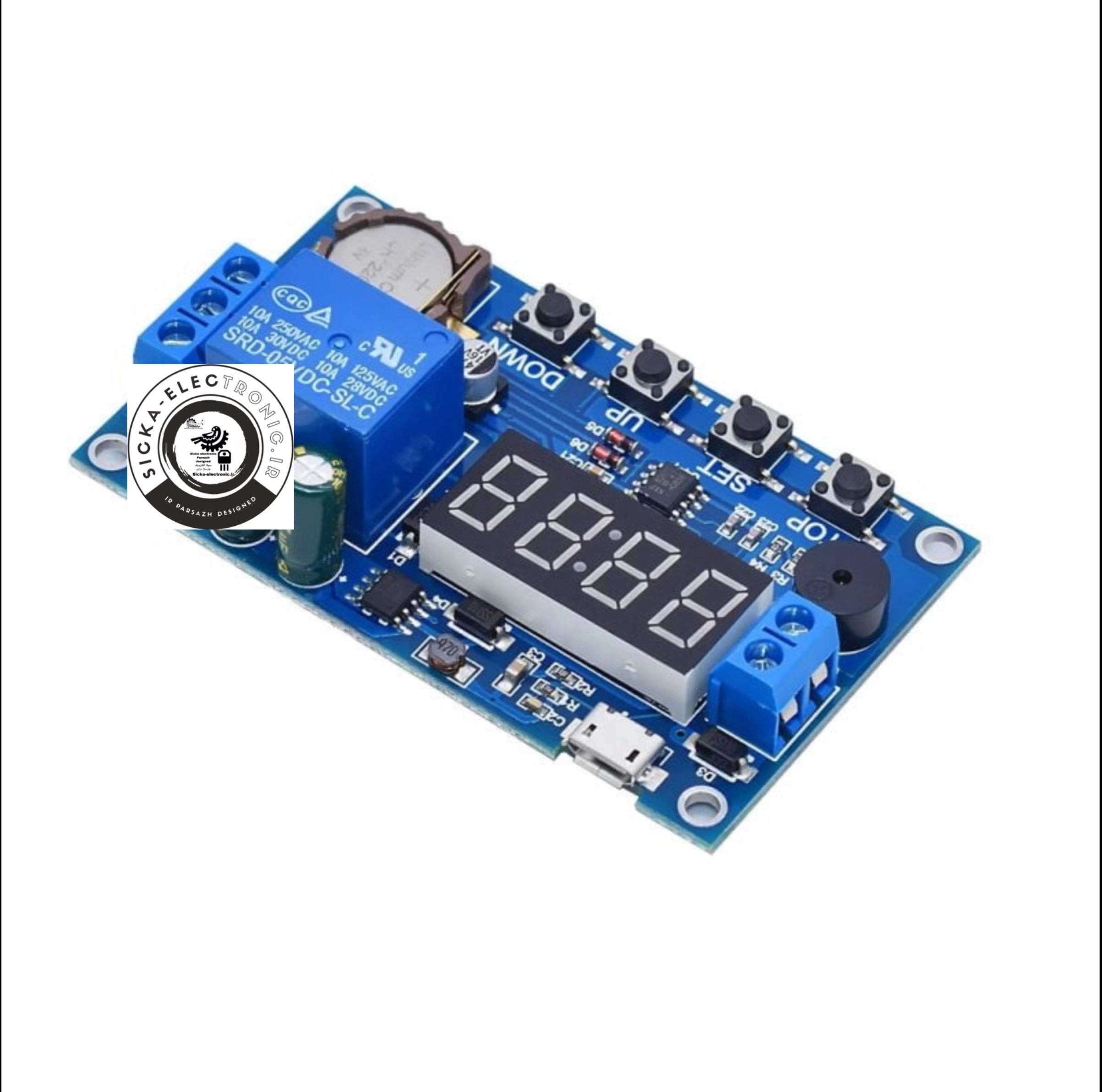

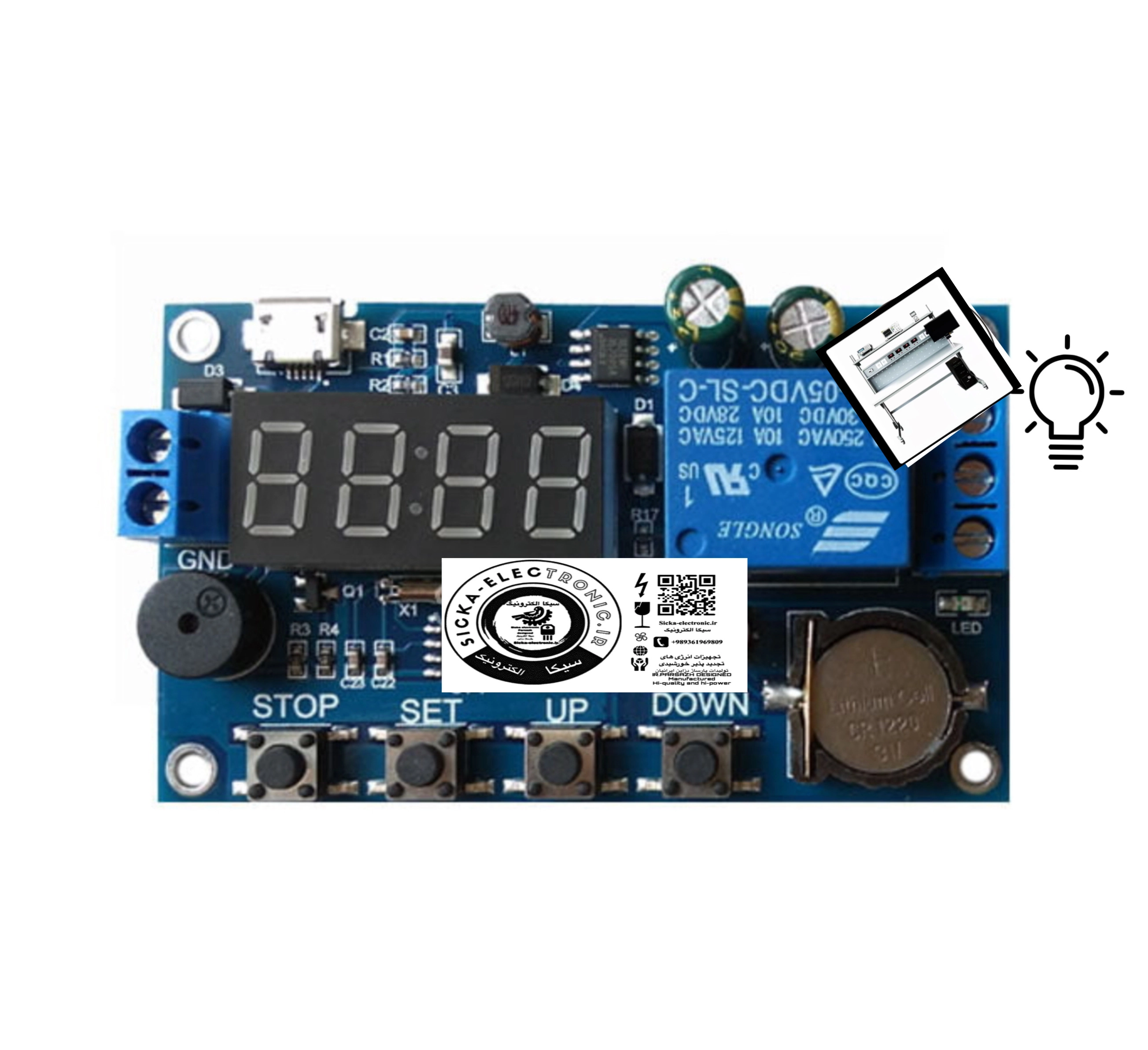

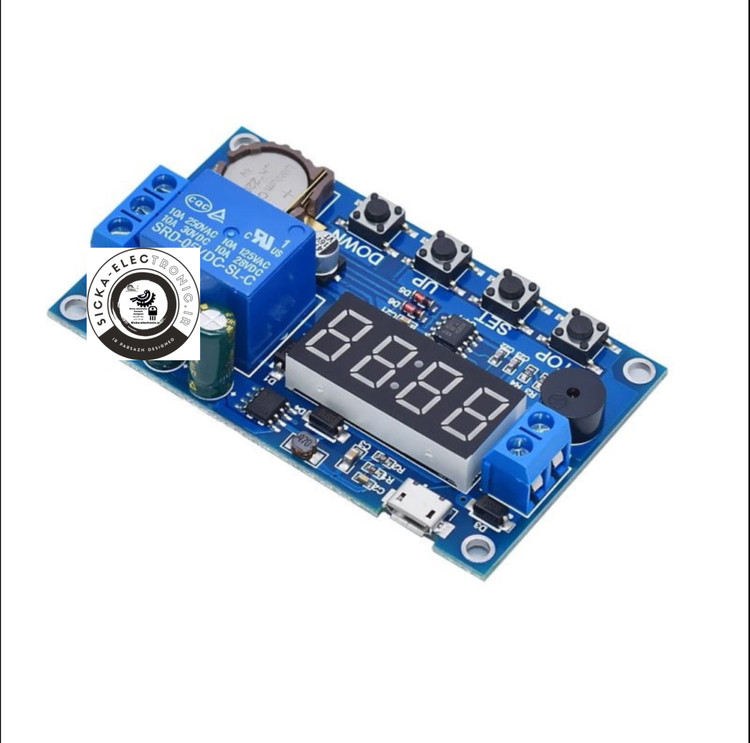

ماژول پیشرفته تایمر حافظه دار با رله و ساعت دقیق قابل برنامه ریزی و تنظیم دقیق دارای باتری بایاس برای حفظ حافظه تنظیمات(کیفیت خوب و پیشرفته)
ولتاژ کاری
۵ ولت تا ۶۰ ولت
ابعاد
24.5 × 27.5 میلیمتر
کیفیت و سفارش
نمونه با کیفیت بالا و مناسب/لطفا توجه داشته باشید نمونه های با قیمت مناسب تر هم از همین ماژول در بازارموجود است ابتدا بررسی و بعد ثبت سفارش نمایید.امکان مرجوعی بعد از ثبت سفارش نمیباشد
سطح اطلاعات کاربری
سطح اطلاعات کاربر متوسط و بالا نیاز است
نکته
این ماژول دارای باتری داخلی نیز میباشد تا در صورت قطع شدن برق خارجی، ساعت و تنظیمات مربوط به آن حفظ شوند.
سلام
ماژول پیشرفته تایمر با رله و ساعت دقیق قابل برنامه ریزی و تنظیم دقیق دارای باتری بایاس برای حفظ حافظه تنظیمات(کیفیت خوب و پیشرفته)
این یک ماژول الکترونیکی است که میتواند به عنوان یک تایمر دقیق و قابل برنامهریزی برای سیستمهای الکترونیکی استفاده شود.
این ماژول دارای ساعت داخلی است که میتواند به صورت دقیق زمان را اندازهگیری کند و با استفاده از آن، میتوان زمان شروع و پایان فعالیتهای مختلف را برنامهریزی کرد.
معرفی ماژول تایمر با ساعت
ماژول تایمر با ساعت دارای ورودی و خروجی دیجیتال است که میتوان از آن برای کنترل دستگاهها و سیستمهای الکترونیکی استفاده کرد.
این ماژول قابلیت تنظیم زمان را برای روشن و خاموش کردن سیستم، برقراری اتصال با دستگاههای دیگر، فعالیتهای توقیفی و سایر کاربردهای مشابه را دارد.
همچنین، ماژول تایمر با ساعت دارای رابط کاربری آسانی است که به کاربر امکان برنامهریزی و تنظیم تایمر را میدهد. به طور کلی، این ماژول یک ابزار قدرتمند و کارآمد برای کنترل زمان و فعالیتهای مختلف در سیستمهای الکترونیکی است.
کاربرد های ماژول تایمر با ساعت
- کنترل دستگاهها: با استفاده از این ماژول میتوان زمان روشن و خاموش کردن دستگاههای الکترونیکی را تنظیم کرد.
- سیستمهای امنیتی: این ماژول در سیستمهای امنیتی میتواند برای تنظیم زمان اعمال قفل دربها و نظارت بر ورود و خروج افراد به کار رود.
- روشنایی خودکار: ماژول تایمر با ساعت میتواند برای روشن و خاموش کردن روشنایی خودکار در سیستمهای روشنایی مورد استفاده قرار گیرد.
- سیستمهای آبیاری: با استفاده از این ماژول، میتوان زمان روشن و خاموش کردن سیستمهای آبیاری را برنامهریزی کرد.
مزایای ماژول تایمر با ساعت
- دقت بالا: با داشتن یک ساعت داخلی دقیق، این ماژول دارای دقت بالایی در برنامهریزی زمانی است.
- قابلیت برنامهریزی: این ماژول قابلیت برنامهریزی و تنظیم زمان را برای رویدادهای مختلف در سیستمهای الکترونیکی دارد.
- سازگاری بالا: ماژول تایمر با ساعت با بسیاری از سیستمهای الکترونیکی و دستگاههای کنترلی سازگاری دارد.
- رابط کاربری ساده: این ماژول دارای رابط کاربری ساده است که برای برنامهریزی و تنظیم تایمر، بسیار آسان است.
- کارآمدی: با توجه به دقت بالا و قابلیت برنامهریزی، ماژول تایمر با ساعت بسیار کارآمد است و میتواند در سیستمهای مختلفی مورد استفاده قرار گیرد.
استفاده از این ماژول نیاز به سطح اطلاعات مبتدی و متوسط دارد

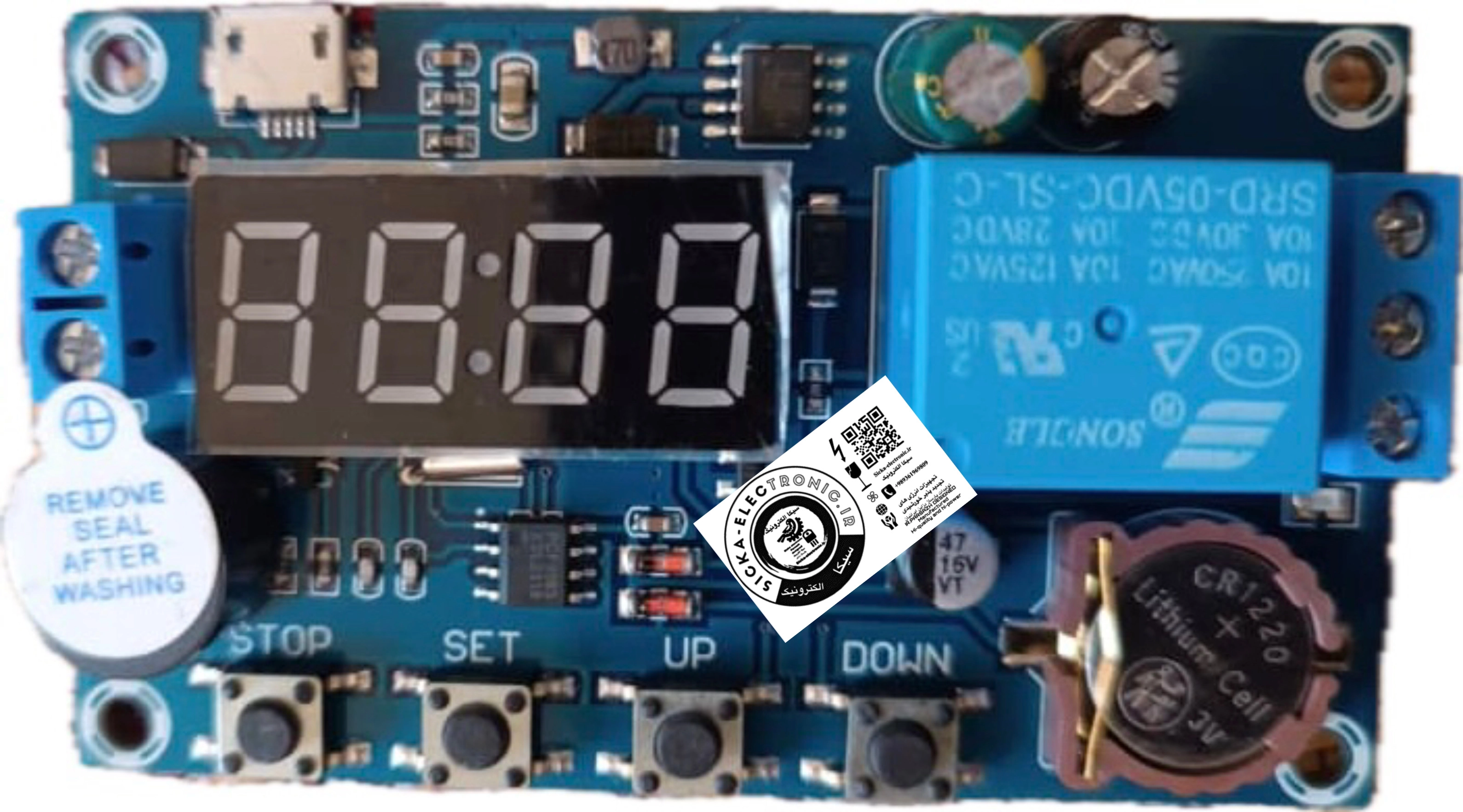

توجه: باتری مناسب این ماژول CR1220 می باشد که از سری 3 ولتی می باشد.

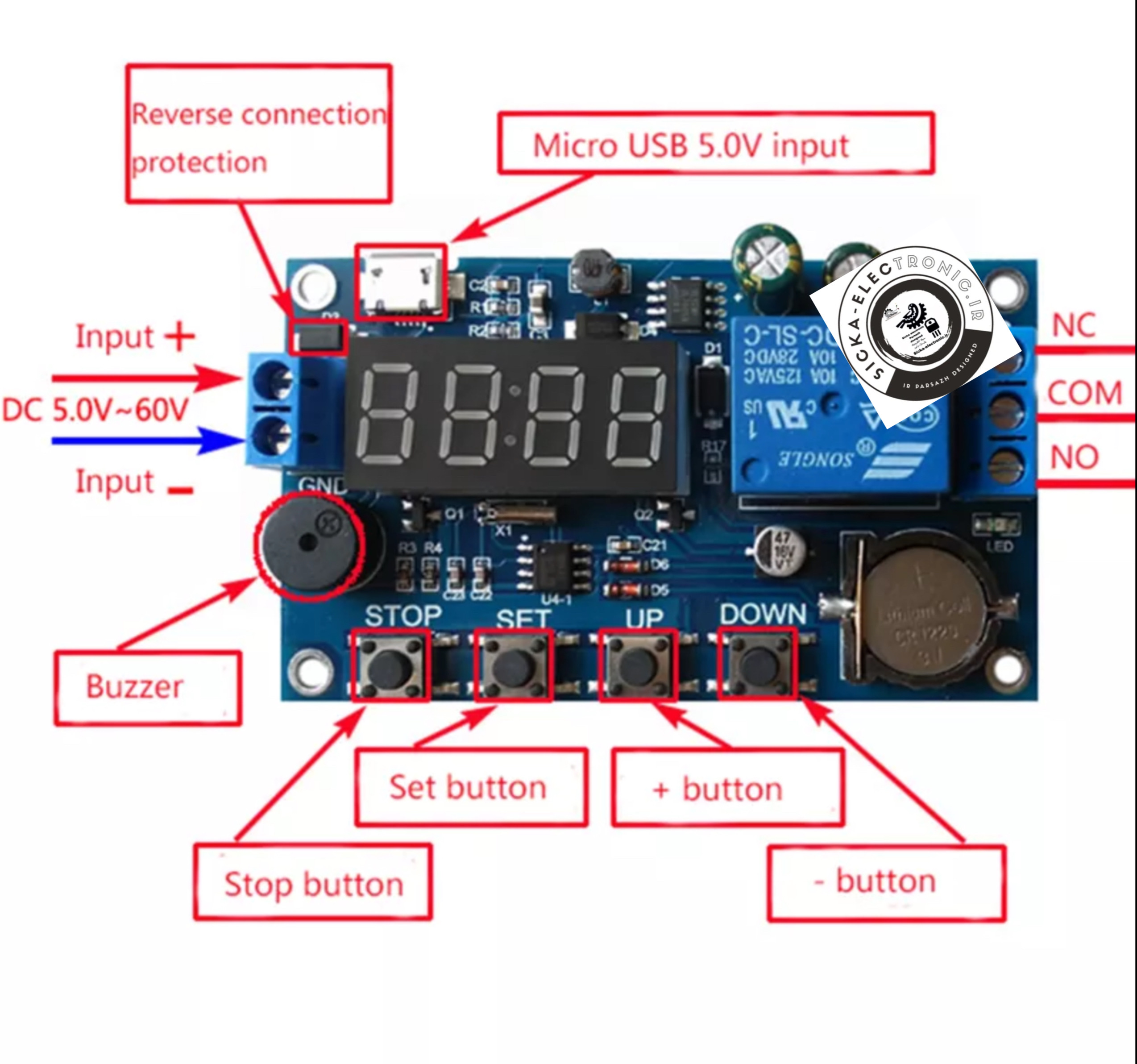

Product Highlights:
Wide voltage power supply 5.0V ~ 60V;
A mode can be set for multiple time periods, can reach 5 time periods;
With a buzzer alarm function.
Mode introduction:
OPE: relay closing time point, CLE: relay off time point
Time period: PE-1 ~ PE-5 5 time periods (OPE to CLE is a time period)
—-: function shielding
P-1: The relay closes or outputs pulses every day to the OPE time point, and the relay turns off or outputs pulses to the CLE time point.
P-2: set the day, to the OPE time point when the relay closed or output pulse, to the CLE time point when the relay disconnect / or output pulse
P-3: set the date of the month, to the OPE time point when the relay closed or output pulse, to the CLE time point when the relay is off or output pulse
P-4: Set the date 1 to date 2, start every day at the OPE time point, end to the CLE time point, relay action or output pulse
P-5: As with P-4, only the month can not be set
how to set the time?
In the time to run the interface, press the DOWN button for a while:
Step 1: Select the time period: PE-1 ~ PE-5 Press UP and DOWN to select;
Step 2: Press the SET key to select the mode: P-1 ~ P-5 (Set this time period to the corresponding mode) by pressing the UP and DOWN keys. (“—-” means to block this time period)
Note: Each time period can be repeated from the “—-“, P-1 ~ P-5 one of the optional; For example,you can let five time periods at the same time work in the P-1 mode, or let Time period 1 work in P-1 mode, time period 2 work in P-2 mode and so on.
Step 3: After the mode selection is finished, press the SET key to enter the time period setting interface, set the interface in the time period, press the SET key to switch the parameter, “OPE” start time point, “CLE” end point, “dAE” date information;
Step 4: After setting the parameters to exit the settings, press the SET button for 2 seconds to release, automatically check whether the parameter settings are legal, legal to save the parameters, return to the time to run the interface; if the parameter is wrong, “ERR” reminder (for example, stop time or Date <= start time or date), return to the parameter setting interface;
Additional features: Each “time period” can be set individually
In the specific parameter setting interface (after the second step), press the STOP button to switch the output mode:

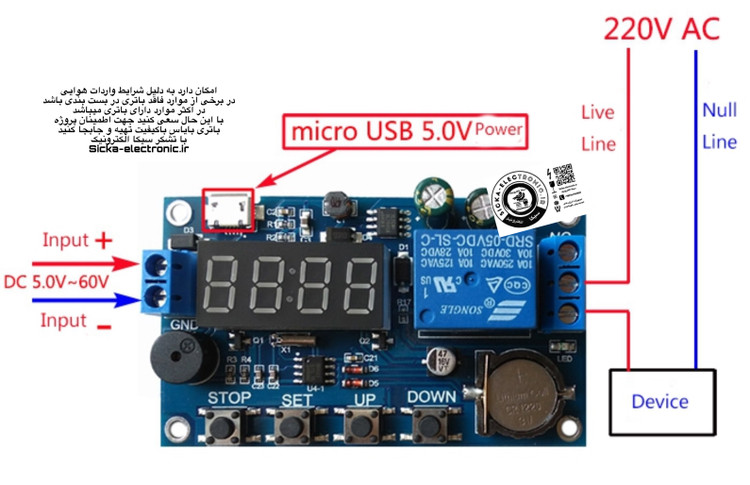

OUT1: Start time point turns on the relay, the end time is off the relay
OUT2: Outputs 1S pulse to start or end time
In the specific parameter setting interface (after the second step), press the STOP button for a while to switch the ringing mode:
BLL0: Ring disable
BLL1: Ring enable
Note: When the bell rings, press any button to stop the ring
STOP key function expansion:
Relay enable mode:
1. ON: enable relay on;
2. OFF: Do not turn on the relay, it is always off;
Press the STOP button on the time display interface to switch between ON and OFF, the current status will flash, and then return to the main interface. (This function is the emergency stop function, press once to close the closed relay)
After the relay is disabled, the product can be used as an alarm clock.
Sleep mode:
1. C-P sleep mode: within five minutes, without any operation, the digital tube automatically shut down the display, the program normal operation;
2. O-d normal mode: digital tube is always open display;
Press the STOP button for a while after 2 seconds to release, to achieve C-P and O-d state of the switch, the current state will flash, and then return to the main interface.
- ولتاژ کاری: ۵ ولت تا ۶۰ ولت طبق دیتا شیت
- جریان کاری: حداکثر 200 میلی آمپر
- نوع سیستم ساعت: RTC (Real-Time Clock)
- دقت ساعت: 1 دقیقه در هر یک روز
- فرکانس سیستم ساعت: 32.768 کیلوهرتز
- ظرفیت حافظه: 56 بایت
- دمای کاری: از -40 درجه سانتیگراد تا +85 درجه سانتیگراد
- ابعاد: 24.5 × 27.5 میلیمتر
این ماژول دارای باتری داخلی نیز میباشد تا در صورت قطع شدن برق خارجی، ساعت و تنظیمات مربوط به آن حفظ شوند.
